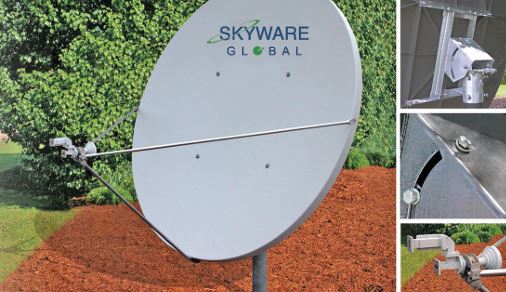

Global Skyware 1.8m Antenna Ku-Band RxTx Class I VSAT Type 180
TheGlobal Skyware1.8m Antenna is a rugged commercial-grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs that strengthens the antenna and sustain its critical parabolic shape necessary for transmit performance. The reflector optics feature a long focal length for excellent cross-pol performance.
The AZ/EL mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/El mount secures the antenna to any 114 mm (4.50″) O.D. mast and prevents slippage in high winds. A specially formulated powder paint process offers excellent protection from weather-related corrosion.
Features
ISO 9001:2008 Certificate of Registration
All materials comply with EU directive No. 2002/95/EC (RoHS).
Designed for typical 1W and 2W BUC’s (2kgs or 4.5lb max. weight for RF (BUC and LNB) at Ku-Band and 5kgs or 11lb max. weight for RF electronics (BUC and LNB) at C-Band)
